Compare ZXW ceramic pressure sensor cores, modules and pressure transmitters according to your equipment requirements. Start with the product type, then review pressure options, electrical specifications and mechanical connections. Share your operating conditions and integration needs with ZXW to discuss suitable options.
Start with how pressure sensing will be integrated into your equipment. Compare sensor cores, modules and pressure transmitters against your mechanical design and electronics, then review the specifications of individual models.
Consider a sensor core when developing your own sensing assembly. Review its dimensions, diaphragm structure and electrical characteristics against your housing, sealing design and signal processing electronics.
Compare Sensor Cores
Compare modules by their dimensions, supply requirements, output signals and connections. Confirm the functions provided by the selected model and how it will connect to your equipment’s electronics.
Compare Sensor Modules

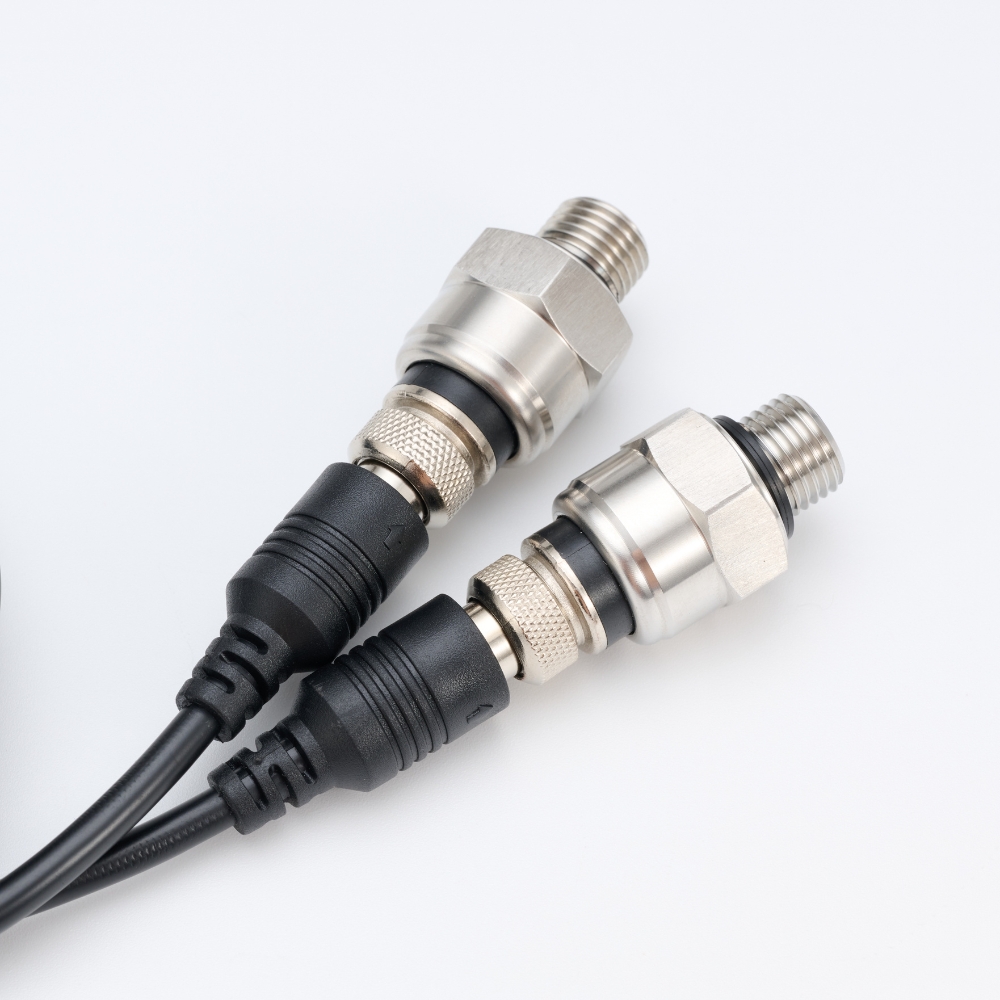

Consider a pressure transmitter when your equipment requires a pressure connection and electrical interface in an assembled unit. Compare pressure options, thread forms, connectors, supply and output specifications.
Compare Pressure Transmitters| Selection Consideration | Sensor Cores | Sensor Modules | Pressure Transmitters |
|---|---|---|---|
| Mechanical Checks | Dimensions, diaphragm structure, mounting and sealing fit. | Module dimensions, installation space and sealing fit. | Pressure connection, installation space and electrical connection arrangement. |
| Electrical Checks | Core electrical characteristics and compatibility with your signal processing electronics. | Supply, output signal, wiring and functions provided by the selected model. | Supply, output signal, connector and wiring definitions. |
| Next Selection Step | Compare core series and listed pressure options. | Compare module series, supply and output specifications. | Compare connection forms, output signals and pressure options. |
After choosing a product type, define the requirements below to narrow your shortlist. Use consistent units and include drawings or electrical specifications where available. If a requirement is still undecided, include it in your inquiry to ZXW.
Specify the normal measurement range, expected pressure peaks and required pressure reference: gauge, absolute or differential. State the pressure unit clearly, then compare your requirements with the options listed for each series.
For modules and transmitters, define the available supply, required output signal and wiring or connector requirements. For sensor cores, review the core’s electrical characteristics against your signal processing electronics.
For cores and modules, check dimensions, installation space and the mounting and sealing arrangement. For transmitters, also specify the pressure connection’s thread standard and size, together with the electrical connector or cable arrangement.
Compare the series below by product type, listed pressure options and integration requirements. Use these tables to build a shortlist, then confirm the selected model’s detailed specifications with ZXW before ordering.
Compare core series by their diaphragm structure and listed pressure options. Review the mechanical drawing and electrical specifications for the selected model.
| Series | Diaphragm Structure | Listed Pressure Options |
|---|---|---|
| Z1860 | Recessed diaphragm | 2, 5, 6, 10, 15, 20, 25, 30, 40, 50, 70, 100, 150, 200, 300, 400, 500, 600 bar |
| Z1830 | Recessed diaphragm | 2, 5, 10, 15, 20, 25, 30, 40, 50, 60 bar |
| Z1360 | Recessed diaphragm | 10, 20, 30, 40, 50, 100, 150, 200, 300, 400 bar |
| Z1330 | Recessed diaphragm | 10, 20, 30 bar |
| Z1331 | Flat diaphragm | 15, 30, 50 bar |
| Z1361 | Flat diaphragm | 3, 10, 15, 30, 50, 100, 150, 300, 400 bar |
Confirm dimensions, mounting, sealing and electrical characteristics against the selected model’s drawing and specifications.
Compare module series by their supply voltage, output signal and listed pressure options. Confirm dimensions, wiring and installation requirements for your equipment.
| Series | Supply Voltage | Output Signal | Listed Pressure Options |
|---|---|---|---|
| Z1866 | 5–16 V | 0.5–4.5 V | 30, 80, 100, 150, 200, 300, 500, 1000, 1600, 2000, 3000, 5500 psi |
| Z1366 | 5 V | 0.5–4.5 V | 80, 100, 150, 200, 300, 500, 1000, 1600, 2000, 3000, 5500 psi |
| Z1838 | 8–30 V | 4–20 mA | 30, 80, 100, 150, 200, 300, 500, 800 psi |
| Z1868 | 8–30 V | 4–20 mA | 30, 80, 100, 150, 200, 300, 500, 1000, 1600, 2000, 3000, 5500 psi |
Confirm the selected module’s mechanical configuration, wiring definitions and output characteristics before connecting it to your electronics.
Compare selected transmitter series by their pressure connection, electrical connection, supply voltage, output signal and listed pressure options. Check the exact configuration before selecting a model.
| Series | Pressure Connection | Electrical Connection | Supply Voltage | Output Signal | Listed Pressure Options |
|---|---|---|---|---|---|
| Z2206 | G1/2 | 3-pin plug | 5 V | 0.5–4.5 V | 10, 20, 30, 100, 200, 300, 500 bar |
| Z2208 | G1/2 | 3-pin plug | 8–30 V | 4–20 mA | 10, 20, 30, 100, 200, 300, 500 bar |
| Z2236 | Female NPT1/4 | Confirm with ZXW | 5–16 V | 0.5–4.5 V | 30, 80, 100, 150, 200, 300, 500, 750, 1000, 1600, 2000 psi |
| Z2246 | NPT1/4 | Confirm with ZXW | 5–16 V | 0.5–4.5 V | 0.2, 0.5, 1, 1.7, 3, 4, 5 MPa |
| Z2276 | R1/8 | Direct cable exit | 5–16 V | 0.5–4.5 V | 5, 10, 20, 30, 40, 50 bar |
| Z2288 | R1/8 | Direct cable exit | 8–30 V | 4–20 mA | 5, 10, 20, 30, 40, 50 bar |
| Z2346 | G1/4 | Plastic circular connector with wiring harness | 5–16 V | 0.5–4.5 V | 5, 10, 20, 30, 40, 50, 500 bar |
| Z2348 | G1/4 | Plastic circular connector with wiring harness | 8–30 V | 4–20 mA | 5, 10, 20, 30, 40, 50, 500 bar |
| Z2356 | G1/4 | Integrated 4-pin circular connector | 5–16 V | 0.5–4.5 V | 2, 5, 10, 20, 30, 50, 100, 200, 500 bar |
| Z2358 | G1/4 | Integrated 4-pin circular connector | 8–30 V | 4–20 mA | 2, 5, 10, 20, 30, 50, 100, 200, 500 bar |
| Z2359 | G1/4 | Integrated 4-pin circular connector | 3.3 V / 5 V | I²C | 2, 5, 10, 20, 30, 50, 100, 200, 500 bar |
| Z2426 | G1/4 | Metal circular connector with wiring harness | 5–16 V | 0.5–4.5 V | 2, 5, 10, 20, 30, 50 bar |
| Z2428 | G1/4 | Metal circular connector with wiring harness | 8–30 V | 4–20 mA | 2, 5, 10, 20, 30, 50 bar |
Selected series are shown above. Confirm thread details, sealing, connector dimensions and pin assignments with ZXW. For other configurations, include your requirements in your inquiry.
Before ordering, review your shortlisted model against the actual operating conditions and integration requirements. Share the details below with ZXW to clarify specifications and agree on any sample evaluation needed for your project.
Identify the measurement medium, including additives or lubricants. Confirm the selected model’s wetted materials and sealing arrangement against your application.
Provide medium and ambient temperatures, normal pressure and expected pressure peaks. Include relevant vibration, moisture or other environmental conditions at the installation point.
Define the accuracy, response time and other acceptance criteria your equipment requires. Confirm how these specifications are stated and the conditions under which they apply.
Review mounting, sealing, wiring and signal compatibility. Discuss sample evaluation in your equipment and agree on the checks needed before proceeding with a production order.
Find answers to common questions about comparing ZXW sensor cores, modules and pressure transmitters. For help with a specific project, share your requirements using the inquiry form.
Start with your equipment’s integration design. Compare a core against your sensing assembly and signal processing electronics, a module against its supplied electrical functions, or a transmitter against the pressure and electrical connections your equipment requires.
No. The values shown are separate pressure specifications listed for each series. Include your required measurement range, pressure unit and expected pressure peaks in your inquiry so ZXW can review the appropriate option.
The output signal is one part of selection. Also compare supply requirements, wiring, pressure specifications, mechanical connections and operating conditions. Confirm the selected model’s detailed specifications before connecting it to your equipment.
Send ZXW your required pressure specification, connection details and relevant drawings. ZXW can review the available options and discuss whether an adaptation or custom solution needs to be evaluated for your project.
Yes. Share the equipment type, measurement point and requirements you already know. Mark any undecided details clearly, and include drawings or specifications where available so ZXW can help identify what needs clarification.
