CERAMIC PRESSURE SENSING COMPONENTS
ZXW supplies ceramic pressure sensor cores and modules for integration into pressure measurement devices. Compare models by pressure range, dimensions and electrical output, or share your application requirements for help selecting a suitable sensor.
Explore ceramic pressure sensor cores and modules for your device design. Choose the product form that fits your mechanical assembly and signal processing requirements.

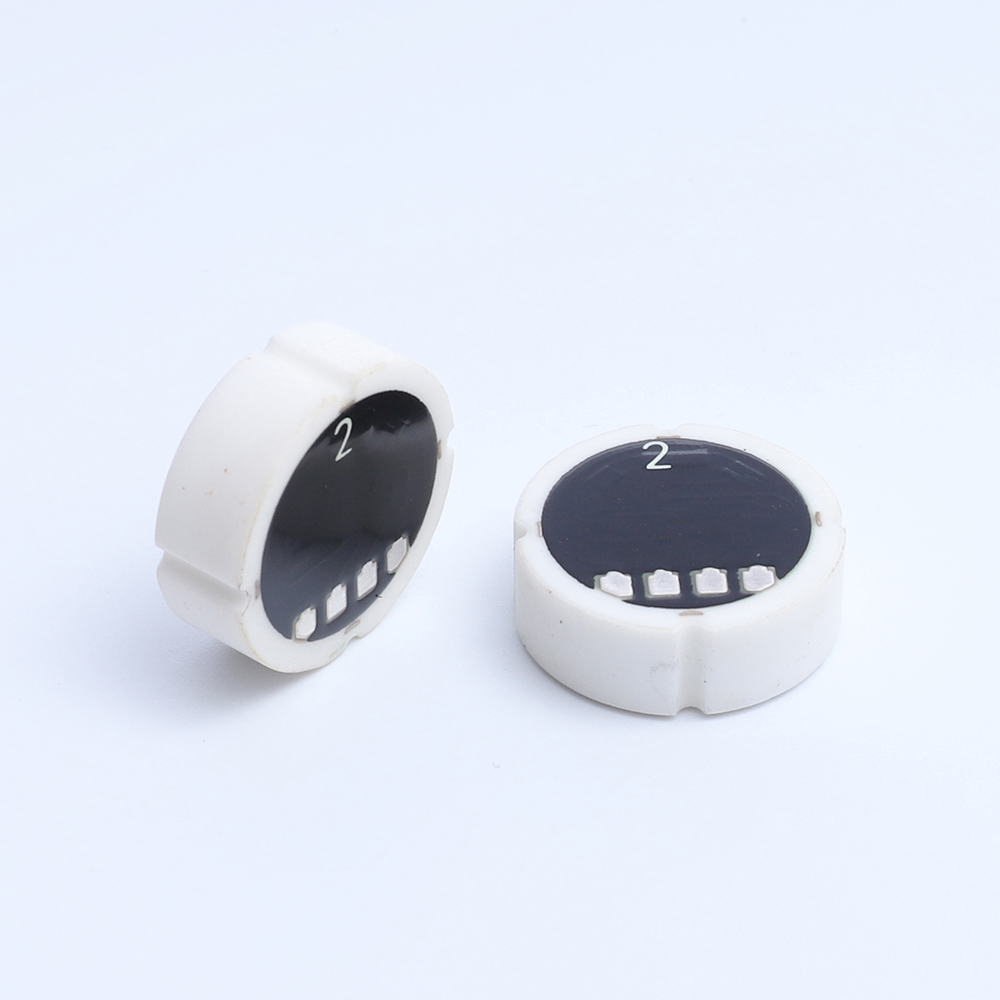

Ceramic sensing elements for integration into pressure measurement assemblies. Select a core by pressure range, dimensions and electrical characteristics, then confirm the housing, sealing and signal conditioning requirements for your design.
Ceramic sensing elements combined with signal conditioning electronics. Compare the supply voltage and output options of each module, then confirm its dimensions, connections and mounting requirements for integration into your device.
Compare ceramic pressure sensor cores and modules by diaphragm design, rated pressure options and electrical specifications. Use the tables below to identify suitable series for your application.
Compare diaphragm designs and available rated pressure options to identify suitable cores for your sensing assembly.
Swipe horizontally to view all columns.
| Series | Diaphragm Design | Rated Pressure Options |
|---|---|---|
| Z1860 | Recessed diaphragm | 18 rated options |
| Z1830 | Recessed diaphragm | 10 rated options |
| Z1360 | Recessed diaphragm | 10 rated options |
| Z1330 | Recessed diaphragm | 3 rated options |
| Z1331 | Flat diaphragm | 3 rated options |
| Z1361 | Flat diaphragm | 9 rated options |
Compare supply voltages, output signals and available rated pressure options to match your device’s electrical requirements.
Swipe horizontally to view all columns.
| Series | Supply Voltage | Output Signal | Rated Pressure Options |
|---|---|---|---|
| Z1836 | 5–16 V | 0.5–4.5 V | 8 rated options |
| Z1866 | 5–16 V | 0.5–4.5 V | 12 rated options |
| Z1366 | 5 V | 0.5–4.5 V | 11 rated options |
| Z1838 | 8–30 V | 4–20 mA | 8 rated options |
| Z1868 | 8–30 V | 4–20 mA | 12 rated options |
Each listed pressure value represents a separate rated pressure option within its series. The minimum-to-maximum values summarize the available variants. Confirm the selected model’s dimensions, pressure reference, electrical specifications and mounting requirements before integration.
Need help narrowing down the options?
Share your measuring medium, pressure range, installation dimensions and output requirements with ZXW.
Choose the diaphragm design, signal conditioning approach and output format that fit your pressure measurement assembly. ZXW offers ceramic sensor cores and modules with different configurations for OEM integration.

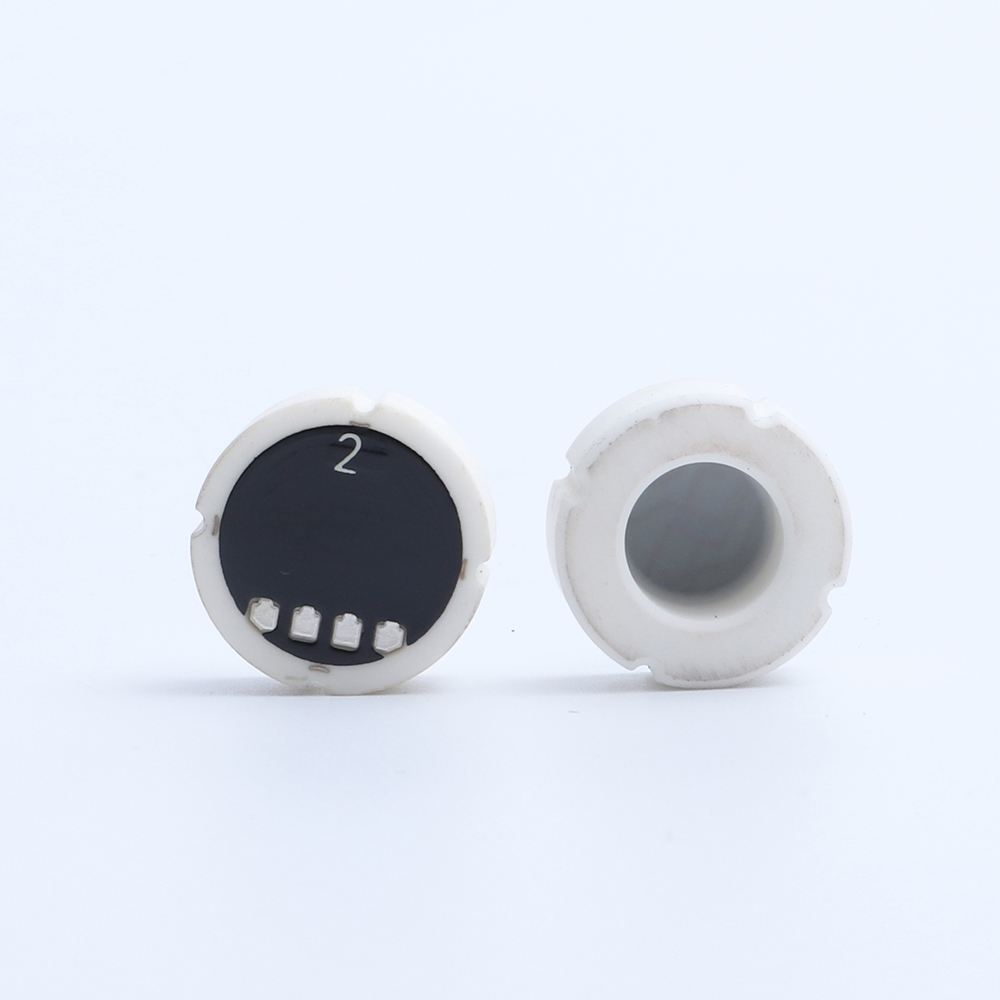

Core series include recessed and flat diaphragm designs. Review the pressure-facing surface, sealing arrangement and mounting dimensions when selecting a design for your assembly.
Recessed diaphragm: Z1860, Z1830, Z1360 and Z1330.
Flat diaphragm: Z1331 and Z1361.
Choose a sensor core when signal conditioning will be handled within your own electronics. Choose a module with conditioning electronics when its specified supply and output match your device requirements.
Available module series provide 0.5–4.5 V voltage output or 4–20 mA current output. Select the output format to match your receiving circuit, and check the supply voltage and wiring requirements of the chosen series.
Voltage output: Z1836, Z1866 and Z1366.
Current output: Z1838 and Z1868.
Review the mechanical, sealing and electrical requirements before integrating a ceramic pressure sensor into your device. Confirm the selected model against your assembly design and operating conditions.
Check the ceramic body dimensions, mounting position and pressure port alignment against your housing design. For modules, allow space for the circuit board, connection wires and assembly access.
Confirm the sealing location and seal material for your measuring medium and operating conditions. Assess compatibility across all wetted components, including the sensor surface, seals and housing.
For cores, confirm the excitation and signal conditioning requirements. For modules, match the specified supply voltage and output signal to your receiving circuit. Verify the pin or wire assignment using the selected model’s connection information.
Specify the required pressure reference, normal working pressure and possible pressure peaks. Confirm the model’s rated range, overload limits and temperature specifications before evaluating it in your equipment.
Share your housing drawing, measuring medium, pressure requirements and electrical interface with ZXW to discuss a suitable sensor configuration.
Discuss Integration RequirementsStart with your application’s measuring medium, pressure conditions and electrical interface. These requirements help narrow down the ceramic sensor core or module options for your equipment.
For pump and water pressure monitoring projects, specify the normal working pressure, possible pressure surges and water temperature. Confirm the wetted materials, sealing arrangement and required output before selecting a sensor.
For compressed air pressure monitoring, provide the pressure range, operating temperature and any exposure to moisture or oil. Confirm the response requirements and the signal interface used by your controller.
For integration into pressure transmitters, electronic gauges or other measurement devices, define the housing dimensions, pressure reference and signal processing approach. Choose between a core and a module according to your assembly and electronics design.
Discuss your sensor configuration and validation requirements with ZXW. Review available series, assess any custom requirements and define the specifications needed for sample evaluation and ordering.
Provide the measuring medium, rated pressure range, installation constraints and electrical requirements. Include your expected order quantity and any drawings that help explain the assembly.
Compare suitable standard series first. Where a custom configuration is needed, discuss its feasibility, specification changes and delivery requirements before proceeding.
Agree on the sample configuration and evaluation criteria. Identify the required checks for measurement performance, electrical output, sealing and operation under your actual application conditions.
Confirm the complete model or SKU, rated pressure option, electrical specifications and connection details. Document the agreed acceptance criteria and any required reports before placing an order.
Have a specific configuration or validation requirement? Send your specifications and drawings to start the discussion.
Discuss Your Sensor RequirementsA core is the ceramic sensing element used within a pressure measurement assembly. A module combines the sensing element with signal conditioning electronics. Choose according to your mechanical design and how your device processes the sensor signal.
When selecting a core, confirm its excitation, output characteristics and the conditioning required by your receiving electronics. The voltage and current outputs listed in the module table apply to the corresponding modules, rather than to every bare core.
Each listed pressure value corresponds to a separate rated pressure variant. A series summarized as 2–600 bar includes several individual options within those limits. Specify the required rated pressure and confirm the complete SKU before ordering.
The listed Z1836, Z1866 and Z1366 series provide 0.5–4.5 V output. Z1838 and Z1868 provide 4–20 mA output. Supply requirements vary by series, so check the model table and connection information when matching a module to your circuit.
Suitability must be assessed for the specific medium and operating conditions. Provide the fluid or gas composition, temperature and pressure conditions. Compatibility should cover the sensor surface, seals and all other parts exposed to the medium.
Custom options are listed for selected module series. Share the required pressure option, electrical interface and installation constraints with ZXW. The feasibility and specifications of any requested changes should be confirmed before proceeding.
Include the series or complete SKU in your inquiry, and specify whether you need a dimensional drawing, pin assignment or electrical specifications. For modules, request the overall assembly dimensions as well as the ceramic body dimensions.
Provide the application, measuring medium, required pressure range and reference type, operating temperature, installation space and electrical requirements. Include the expected quantity and any available drawings to help identify suitable options.
